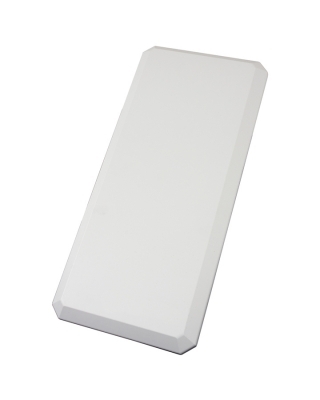

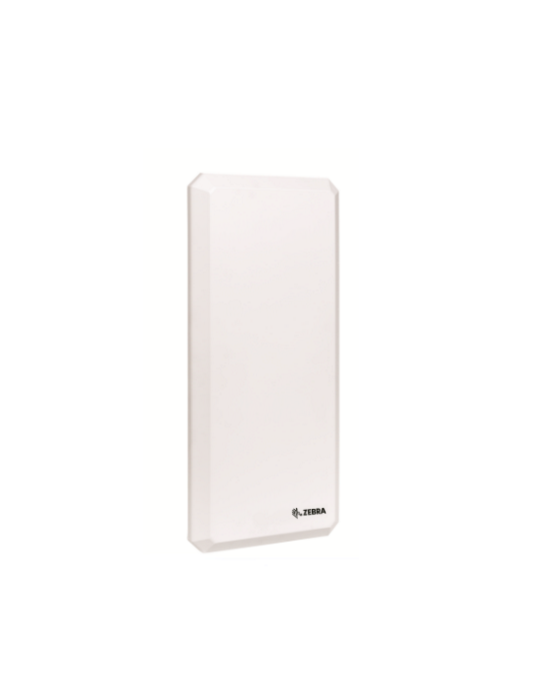

Zebra AN400 RFID Antenna
The AN400 antenna offers a new level of operational efficiency in areas previously too large to accommodate RFID technology.

  • The AN400 antenna offers a new level of operational efficiency in areas previously too large to accommodate RFID technology. Its wide read field and high-speed RF signal conversion allows fast and accurate communication of EPC-compliant passive tag data. The high-performance area antennas are easy to mount on ceilings and walls to create superior read zones around shelves, doorways and dock doors – anywhere boxes and pallets are moving into and out of a facility.

  • The AN400 will perform reasonably well in EU frequency in most applications.

    See footnotes for additional information1

    Performance Characteristics

    Axial ratio
    <3 dB

    Isolation
    -37 db

    Gain
    6.0 dBi linear

    Frequency range2
    902-928 MHz

    3 dB beam width
    60°

    DC resistance
    10K Ohm

    Voltage Standing Wave Ratio (VSWR)
    1.25

    Physical Characteristics

    Dual port
    Yes

    Dimensions (with mounting screws)
    28.3 x 12.5 x 1.5 in. (71.7 x 31.7 x 3.8 cm) H x W x D

    Casing
    Aluminum with polycarbonate cover

    Weight
    8 lbs. (3.6 Kg)

    Polarization
    Two circular polarized patch array

    Connector
    Type "N" Female

    User Environment

    Operating temperature
    +32° to +122° F (0° to +50° C)

    Environmental sealing
    IP54

    Storage temperature
    -4° to +158° F (-20° to +70° C)
