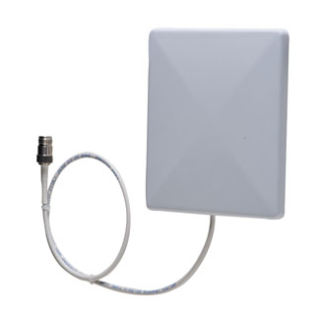

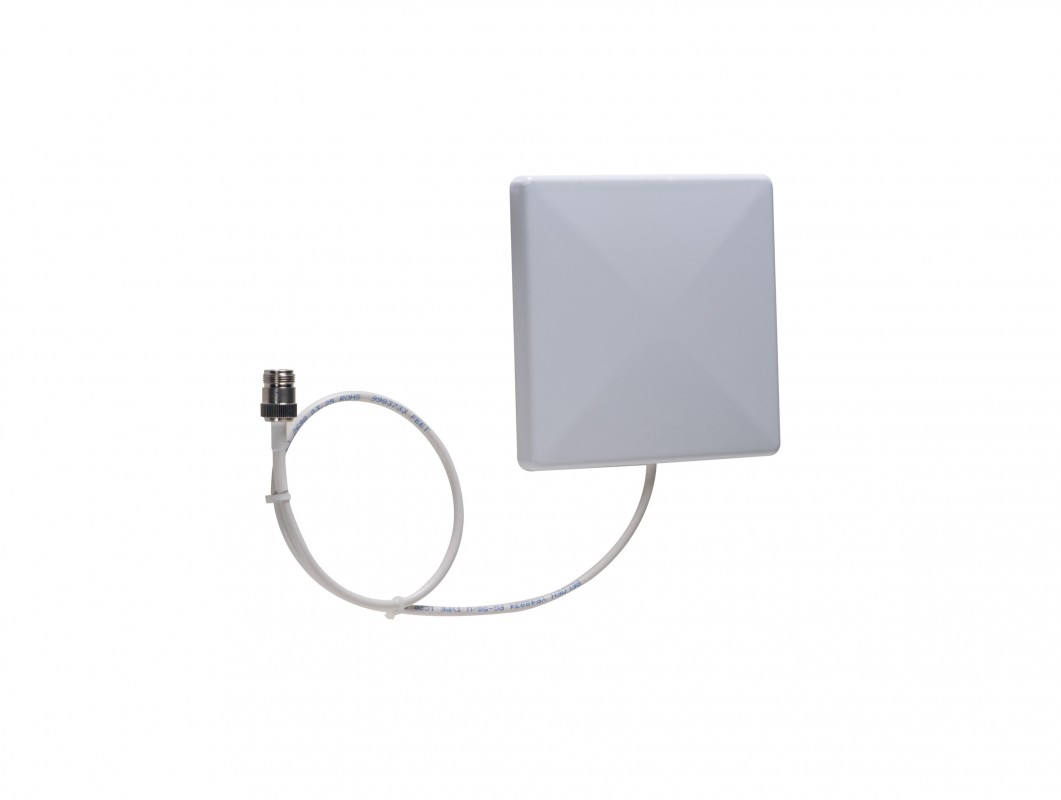

Zebra AN710 RFID ANTENNA
The AN710 RFID antennas offer all the features required for carpeted and customer-facing environments.

  • The AN710 RFID antennas offer all the features required for carpeted and customer-facing environments. A perfect complement to Zebra FX7400 RFID Reade , the AN710 antennas are extremely compact, offering the aesthetics required for the most discreet installation in the most space constrained areas — for example, under the point of sale (POS) counter. The integrated mounting bracket enables easy installation in minutes.



  • Performance Characteristics

    Nominal impedance
    50 Ohm

    Power
    10 watts (max. input)

    Frequency range2
    902-928 MHz, 867-870 MHz

    Gain
    3.0 dBi linear

    Physical Characteristics

    Connector
    Type "N" Female

    Dimensions (with mounting screws)
    5.75 x 5.75 x 0.69 in. (146.05 x 146.05 x 17.53 mm) H x W x D

    Weight
    1.1 lbs (0.5 kg)

    User Environment

    Operating temperature
    -22° to +176° F (-30° to +80° C)

  • Healthcare icon Zebra AN710 RFID ANTENNA can be used in Health care Industry
    Retails icon Zebra AN710 RFID ANTENNA can be used on Retail Stores
    Logistics icon Zebra AN710 RFID ANTENNA Mostly used in Logistics Industry for Asset Managemnet and Tracking
    Manufacturing icon Manufacturing Industry uses Zebra AN710 RFID ANTENNA
    Government icon Zebra AN710 RFID ANTENNA used in various Government Sectors
    Travel & Leisure icon Zebra AN710 RFID ANTENNA for Travel & Leisure
    Special Materials icon Zebra AN710 RFID ANTENNA for Special Materials
