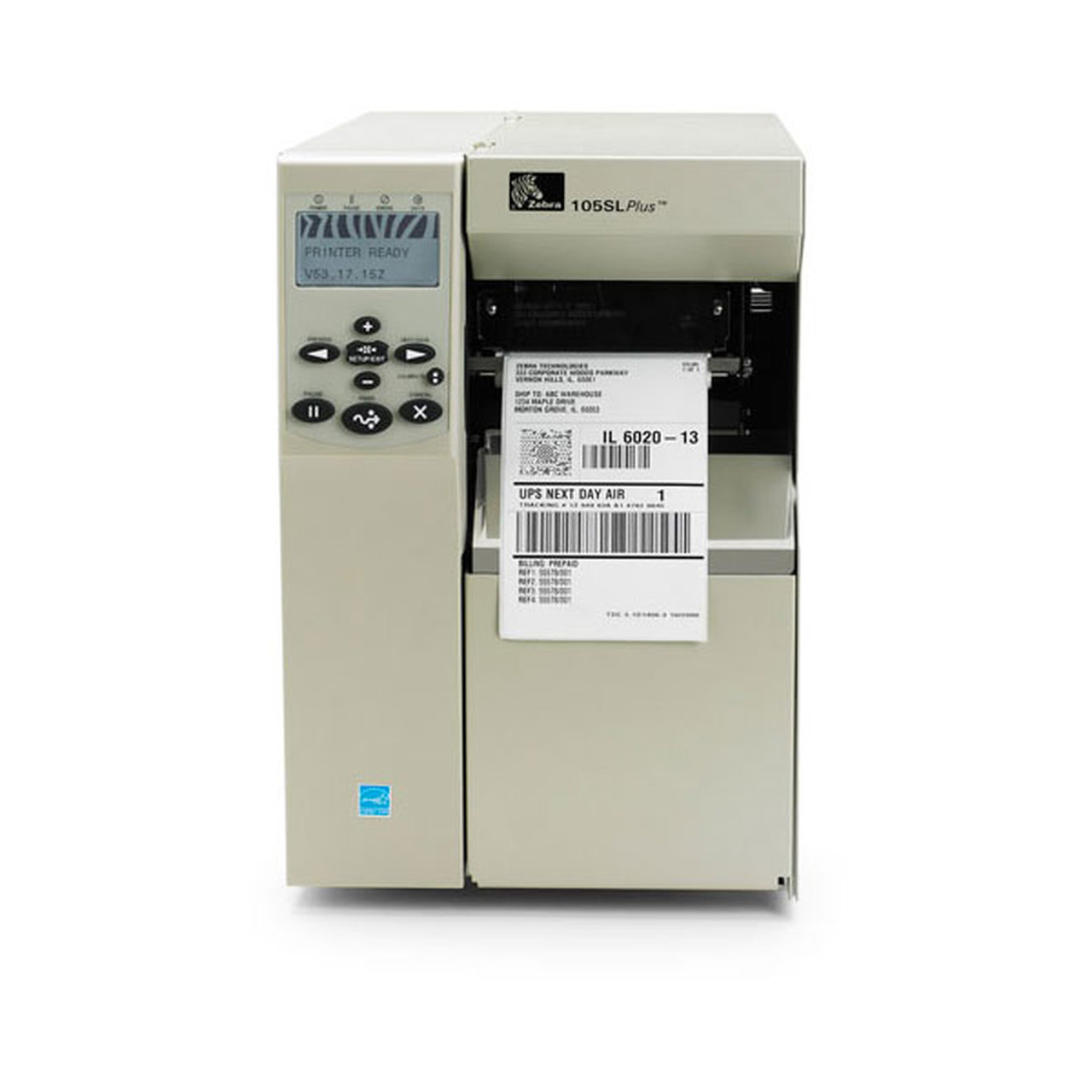

Zebra 105SL Barcode Label Printer
Barcode vault provides the best services for Zebra 105SL Barcode Printer. Zebra SL105 offers the ruggedness and reliability of the popular 105Se with significantly enhanced capabilities. Based on a proven platform, the 105SL incorporates enhanced memory and processing capacity combined with cutting-edge connectivity that makes it the choice of experienced users.
  • Standard Features • Print Method: Thermal Transfer or Direct Thermal • All-metal reinforced box section enclosure • All metal interior components - e.g drives, gears, and media spindles • Transmissive media sensor • Fast 32-bit processing • Selectable print speeds up to 8ips • ZebraLink connectivity • Standard 2-line, 16-character LCD control panel • Zebra's E3 Printhead Energy Control Media Specifications • Label and liner width: 0.79" (20mm) to 4.52" (115mm) • Ribbon width: 0.79" (20mm) to 4.5" (114mm) Maximum Print Area • Width: 4.09" (104mm) • Length with 203 dpi: 106" (2,692mm)(with standard memory) • Length with 300 dpi (optional): 65" (1,651mm)(with standard memory) • Maximum Roll Size: 8" (203mm) O. D. on a 3" (76mm) I. D. core • Thickness (label & liner): 0.003" (0.076mm) to 0.012" (0.305mm) Media Types • Roll-feed, die-cut, continous, fanfold, tags, tickets Ribbon Specifications • Maximum Roll Size: 3.2" (81.3mm) O. D. on a 1" (25.4mm) I. D. core • Standard Lengths: 984ft. (300m) to 1,476ft. (450m) - provides 2:1 and 3:1 media roll to ribbon ratios • Ribbon Set-up • Ribbon wound ink side out • The ribbon is recommended to be at least as wide as media Max. Print Speed • 8" /sec (203mm/sec) at 203 / 300dpi Print Resolution • 203dpi (8 dots/mm) Memory • 6 MB SDRAM, 4 MB Flash Fonts and Character Sets • Standard Fonts: 7 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed) • Sets: IBM Code Page 850 International character set • Optional European and Asian font sets • Supports user-defined fonts and graphics-including custom logos • ZPL II drawing commands-including boxes and lines Programming Languages • ZPL and ZPL II: Universal language for Zebra printers. Simplifies label formatting and enables compatibility with other Zebra printers • ZBI-Controls and interprets text and data from peripherals and non-ZPL printer programming languages. Transmits captured data over LAN, WAN, or wireless network via e-mail or TCP/IP messaging Dimensions • Height: 15.5" (394mm) • Width: 11.2" (283mm) • Depth: 19.5" (495mm) Weight • Without packaging: 55 lbs (25 kg) Communication Interface Capabilities • Standard high-speed RS-232C serial interface • Centronics IEEE 1284 bi-directional parallel • Embedded ZebraLink Webview and Alert features (requires optional ZebraNet print servers) • ZebraNet Wireless Print Server option • ZebraNet 10 / 100 Print Server option (internal/external) • ZebraNet PrintServer II option (internal/external) Bar Codes/Symbologies Bar Code Ratios: 2:1, 7:3, 5:2, and 3:1 Code 39, UPC-A, UPC-E, UPC and EAN with 2 or 5 digit supplements, Code 93, Code 11, EAN-8, EAN-13, Interleaved 2 of 5, Code 128 with subsets A/B/C and UCC Case Code, Plessey, Postnet, Logmars, Codabar, Standard 2 of 5, MSI, RSS, ISBT-128 2-Dimensiolan Codes MaxiCode, MicroPDF417, QR-Code, Data Matrix, PDF417, Codablock, Code 49, RSS Electrical • Universal power supply with factor correction 90-264 VAC, 48-63 Hz Environment • Operating temperatures: 41°F(5°C) to 104°F (40°C) • Storage temperatures: -40°F(-40°C) to 140°F (60°C) • Operating Humidity: 20-85% non-condensing • Storage Humidity: 5-85% non-condensing Agency Approvals • IEC 950;801-2, 3 and 4 standards; UL 1950; CISPR 22 (class B); CSA 950; Canadian Doc. (class A); FCC (class A); CE compliance Options and Accessories • 300dpi printhead • PCMCIA memory slot (up to 8MB Flash) • Internal Rewind • Peel/liner rewind (for print-and-apply) • Full-width cutter with orderable catch tray • Reflective media sensor • European and Asian font sets • Twinax and coax interfaces • RS-422 / 485 serial adapter interface • ZebraNet Wireless Print Server • ZebraNet 10 / 100 Print Server (internal/external) • ZebraNet PrintServer II (internal/external) • BAR-ONE label design software • Fan-fold bin
  • Healthcare icon Zebra 105SL Barcode Label Printer can be used in Health care Industry
    Retails icon Zebra 105SL Barcode Label Printer can be used on Retail Stores
    Logistics icon Zebra 105SL Barcode Label Printer Mostly used in Logistics Industry for Asset Managemnet and Tracking
    Manufacturing icon Manufacturing Industry uses Zebra 105SL Barcode Label Printer
    Government icon Zebra 105SL Barcode Label Printer used in various Government Sectors
    Travel & Leisure icon Zebra 105SL Barcode Label Printer for Travel & Leisure
    Special Materials icon Zebra 105SL Barcode Label Printer for Special Materials
