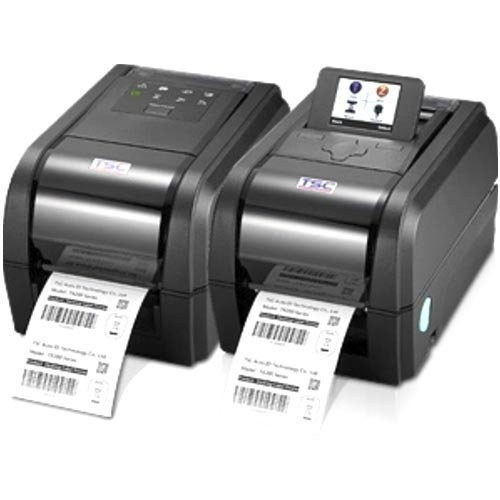

TSC TX200 Series Label Printer
The TX200 Series of thermal transfer desktop level printers supports more printing applications than any other printer in its class. With three models available, the four inch wide TX200 Series can address everything from higher volume 4x6 shipping labels, higher resolution product marking and graphic solutions, to high resolution labels used in electronics marking applications. Models in the TX200 Series include: TX200 – 203 dpi resolution with print speeds up to 8 inches per second required for printing the smallest labels The TX200 series is the culmination of 23 years of designing best-selling high-performance and durable desktop printers. The printers use a large 300 meter ribbon supply on a one inch core that saves both time and money. The TX200 Series features a user-friendly spring-loaded center-biased clamshell design for easy drop-in media loading of 5-inch rolls of media. The printer construction features a rugged double-wall design that is stronger and more durable than other thermal transfer mechanisms on the market. Its strong motor is powerful enough to handle a 300-meter-long ribbon. Standard interfaces include USB 2.0, USB-A Host, 10/100 Mbps Ethernet and Serial connectivity. Optional communications interfaces include Bluetooth, 802.11a/b/g/n WiFi and Centronic Parallel. Printer options include a bright, color LCD display, label peel and present, and cutter.As with all TSC printers, the TX200 Series features the TSPL-EZ™ printer-control language, which is fully compatible with other TSC printer languages, .The languages automatically decipher and translate the format of each label as it is sent to the printer
  • Up to 203 mm (8”) per sec. print speed. 128 MB Flash memory and 128 MBSDRAM memory. microSD Flash memory expansion upto 32 GB. User-friendly clamshell design. Serial, internal Ethernet USB 2.0 & US Bhost interfaces standard. 3.5” color TFT Display (Standard for TX600, Optional for TX200 & TX300). Label capacity up to 127 mm (5”) OD. Ribbon capacity up to 300 m (984’). TSPL-EZâ„¢ firmware for plug-n-play ease. Optional peel-off module, cutter module, external Bluetooth module, slot-in 802.11 a/b/g/n wireless module, stand-alone keyboard. ENERGY STAR qualified. The TX200 series is the culmination of 23 years of designing best-selling high-performance and durable desktop printers. The printers use a large 300 meter ribbon supply on a one inch core that saves both time and money. The TX200 Series features a user-friendly spring-loaded center-biased clamshell design for easy drop-in media loading of 5-inch rolls of media. The printer construction features a rugged double-wall design that is stronger and more durable than other thermal transfer mechanisms on the market. Its strong motor is powerful enough to handle a 300-meter-long ribbon. TSC printers can print on a large variety of materials including a host of coated and non-coated papers, and a variety of synthetic materials including polyester, polypropylene, Tyvek, vinyl, and mylar. TSC desktop and industrial model printers are among the most popular in the world for use with synthetic materials due to their robust design and large power supplies.

  • Resolution - 8 dots/mm (203 DPI), Max. print speed - 203 mm (8”)/second, Max. print width - 108 mm (4.25“), Max. print length - 25,400 mm (1,000“), Physical dimension - 226 mm (W) x 198 mm (H) x 332 mm (D)8.90“ (W) x 7.80“ (H) x 13.07“ (D), Weight - 3.75 kg (8.27 lbs), Label roll capacity - 127 mm (5“) OD, Ribbon - 300 m long, max. OD 67 mm, 1“ core (ink coated outside), Ribbon width - 40 mm ~ 110 mm (1.6” ~ 4.3”), Processor - 32-bit RISC CPU, Memory- • 128 MB Flash memory • 128 MB SDRAM • microSD card reader for Flash memory expansion, up to 32 GB, nterface - USB 2.0 • RS-232 • Internal Ethernet, 10/100 Mbps • USB Host • Centronics (factory option), • External Bluethooth (user option), • Slot-in 802.11 a/b/g/n wireless (dealer option), Power - External universal switching power supply, • Input: AC 100-240V, 2.5A, 50-60Hz, • Output: DC 24V, 3.75A, 90W, Font and barcode rotation - 0, 90, 180, 270 degree, Printer language - TSPL-EZTM (Compatible to EPL, ZPL, ZPL II), Media type - Continuous, die-cut, black mark, fan-fold, notch (outside wound), Media width - 19 ~112 mm (0.75” ~ 4.4”), Media thickness - 0.055 ~ 0.254 mm (2.17 ~ 10 mil), Media core diameter - 25.4 ~ 38.1 mm (1” ~ 1.5”), Label length - 3 ~ 25,400 mm (0.1“ ~ 1,000“) 3 ~ 11,430 mm (0.1“ ~ 450“) 3 ~ 2,540 mm (0.1“ ~ 100“), Environment condition Operation - 5 ~ 40°C, 25 ~ 85% non-condensing, Storage - -40 ~ 60°C, 10 ~ 90% non-condensing, Safety regulation - FCC Class B, CE Class B, RCM, UL, cUL, TÃœV/Safety, CCC, BIS, EAC, ENERGY STAR, Environmental concern - Comply with RoHS, WEEE,

  • Healthcare icon TSC TX200 Series Label Printer can be used in Health care Industry
    Retails icon TSC TX200 Series Label Printer can be used on Retail Stores
    Logistics icon TSC TX200 Series Label Printer Mostly used in Logistics Industry for Asset Managemnet and Tracking
    Manufacturing icon Manufacturing Industry uses TSC TX200 Series Label Printer
    Government icon TSC TX200 Series Label Printer used in various Government Sectors
    Travel & Leisure icon TSC TX200 Series Label Printer for Travel & Leisure
    Special Materials icon TSC TX200 Series Label Printer for Special Materials
