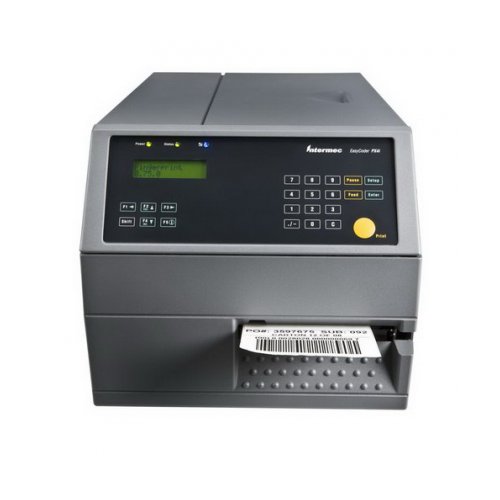

Intermec PF4i Mid Range Label Printer

The Intermec PF4i is a compact direct thermal or thermal transfer label printer with an easy to load design, and a compact flash memory slot for easy upgrades. The PF4i incorporates a rugged metal design and LCD display for easier control of printer options.
The PF4i connectivity options include wireless Ethernet network connectivity, cutter, internal rewinder and self strip (peel and present). The PF4i is perfect for applications within manufacturing, warehousing and transportation environments including stock labelling, parcel shipping and inventory tracking.

  • A member of the smartest bar code printer family on the market, the Intermec PF4i is flexible and programmable, enabling customers to optimize their printing operations, streamline deployment, and achieve quick return on investment. Built to meet the needs of mission-critical applications, the rugged PF4i delivers advanced, secure connectivity and the latest network protocols, ensuring peace-of-mind today and a reliable, scalable solution for the long haul. The compact PF4i Mid-Range Printer is part of Intermec's complete line of smart, strong and secure industrial printers.

    Feature -:

    • Strong, all-metal construction and superior throughput for harsh industrial environments
    • Compact size fits space constrained applications
    • Smart Printing capabilities support stand-alone printer applications, eliminating PC expense and complexity
    • All-in-one, user-selectable printer languages – Fingerprint/ Direct Protocol (DP), IPL, ZSim and DSim – in every printer
    • Secure wireless connectivity: CCX and WiFi® certified with WPA2
    • Integrated Ethernet, USB host and device, and serial interface standard
    • Internet Protocol v6 (IPv6) support
    • Interchangeable print head provides choice of 203 or 300 dpi print resolution

  • Operating Temperature:
    +5° to +40°C (+41° to +104°F)
    Storage Temperature:
    -20°C to +70°C (-4°F to +152°F)
    Humidity:
    20-80% RH non-condensing

    INTERFACES

    Standard:
    • Ethernet 10/100 Mbps
    • RS-232, up to 115.2 kB/s
    • Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
    • IPL: XON/XOFF, Intermec Std. Protocol
    • USB 2.0

    Optional:
    • Parallel IEEE 1284
    • Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)
    • Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop

    Wireless:
    • IEEE 802.11 b/g
    • Wi-Fi Certified, CCX (Cisco®) version 3 Certified
    • WEP, WPA, WPA2, 802.11x (EAP-TTLS, LEAP, PEAP, FAST), 802.11i
    • Multiple industrial antenna options for maximized coverage

    Supported Protocols:
    TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.) LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP.SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and IPv6.

    MEMORY

    Standard:
    16MB Flash memory, 32MB SDRAM, 1 CompactFlash slot
    Options:
    1GB CompactFlash memory, multi-GB USB memory device (FAT16/FAT32 USB drivers supported)

    PHYSICAL CHARACTERISTICS

    Length:
    405 mm (15.9 in)
    Height:
    178 mm (7.0 in)
    Width:
    244 mm (9.6 in)
    Weight:
    8 kg (17.7 lbs)

    POWER

    Input:
    90 to 265 VAC, 45 to 65Hz

    Consumption: Standby 15W; Peak 300W

    PRINT SPECIFICATIONS

    Max Width:
    104 mm (4.09 in) at 203 dpi
    105.7 mm (4.16 in) at 300 dpi
    Max Length:
    4095 mm (161.2 in) at 203 dpi
    2730 mm (107.5 in) at 300 dpi
    Max Label Width:
    114.3 mm (4.5 in)
    Thickness:
    3.0 to 7.5 mil
    Style:
    Roll-fed or fanfold
    Label Roll Max Diameter:
    (long door): 152.4 mm (6 in)
    (short door): 213 mm (8.38 in)
    Label Roll Core:
    38-76mm (1.5-3 in)
    Print Speed:
    100 – 200 mm/s (4 – 8 ips) variable (203 dpi)
    100 – 150 mm/s (4 – 6 ips) variable (300 dpi)
    Resolution:
    8 dots/mm (203 dpi)
    11.8 dots/mm (300 dpi)
    Media Type:
    Direct thermal and thermal transfer label, ticket and tag printer. Also available in dark metallic enclosure.
