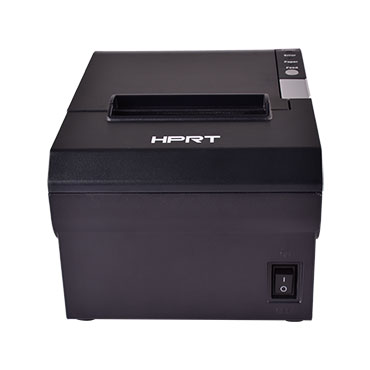

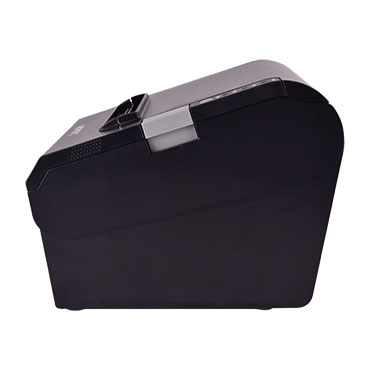

HPRT TP805 Label Printer

   Patent cutter technology
•  250mm/s high printing speed
•  Three in one combo interface
•  Provide OPOS driver

  • ·         High printing speed up to 250mm/s

    ·         Three in one interface, including RS232, Ethernet and USB

    ·         Embedded with 2D barcode edition algorithm which supports the 2D barcode common in the market, such as QRcode/ PDF417

    ·         Provide Windows/Linux driver

    ·         Provide comp te OPOS driver

    ·         Support page mode printing

    ·         With doub cash drawer driver

    ·         Movab paper guard plate design which supports 58mm, 76mm, 80mm wide thermal paper
  • PrintingPrint MethodDirect Thermal
    Resolution203 dpi (8 dots/mm)
    Print SpeedMax. 250 mm/s
    Printing WidthMax. 72 mm
    InterfaceStandardUSB Type B, Cashbox
    OptionEthernet, Parallel  Port, Serial Port, Bluetooth, Wi-Fi, Serial Port and Ethernet(2 in 1)
    Page ModeSupport
    Programming LanguageESC/POS
    FontsAlphanumeric; Simplified Chinese, Traditional Chinese; 47 International Character Sets
    BarcodeLinear BarcodesUPC-A, UPC-E, EAN-8, EAN-13, CODE39, ITF, CODEBAR, CODE128, CODE93
    2D BarcodesPDF417, QR Code
    GraphicsSupport bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 40 KB, the total size of bitmap is 256 KB)
    SensorsStandardPaper out Detector, Head up Sensor, Paper near end Sensor
    OptionBlack Mark Detector
    MemoryRAM2 MB
    Flash4 MB
    LED IndicatorPowerGreen
    Paper outRed
    ErrorRed
    Power SupplyInputAC 100 V ~ 240 V, 50/60Hz
    OutputDC 24 V, 2 A
    PaperPaper TypeThermal Receipt Paper
    Paper WidthMax. 80mm
    Paper Thickness0.056 ~ 0.13 mm
    Roll Paper DiameterMax. 83 mm (O.D.)
    Paper LoadEasy paper loading
    Paper cutPartial cut
    EnvironmentOperating0 °C ~ 40 °C, 20% ~ 85% R.H
    Storage-20 °C~70 °C, 5% ~ 95% R.H
    Physical CharacteristicsDimensions195(L)×147(W)×147(H) mm
    Weight1.8 kg
    Options and AccessoriesUSB/Serial/Parallel Cable, Paper roll, Power Adapter, Power Cord, CD, Quick Start Guide
    ReliabilityTPH life150 km
    Cutter2 million cuts
    SoftwareDriverWindows XP/ 7/ 8/ 8.1/ 10; POSReady; Linux; OPOS
    SDKWinCE, WindowsMobile, Android
