AP360 Label Applicator

AP360 Label Applicator

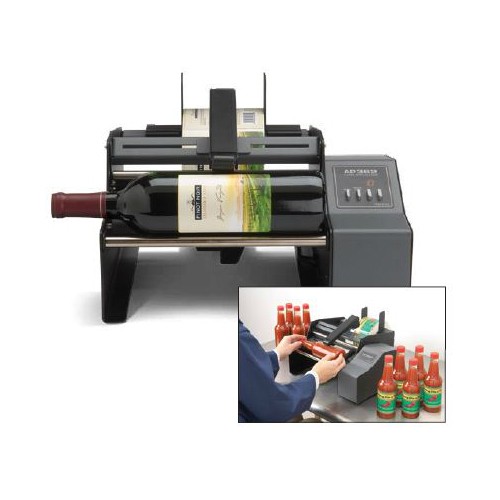

Primera’s AP-Series Label Applicators are the perfect semi-automatic labeling solution for cylindrical containers as well as many tapered containers, including bottles, cans, jars and tubes. Set-up and operation is fast and easy:

  1. Set the guides
  2. Place your container in the machine
  3. Press the footswitch and your label is applied

The built-in spring-loaded pressure arm makes sure labels are applied firmly and without wrinkles

  • Apply Labels Fast and Accurately

    With an AP-Series Label Applicator you’ll be able to apply labels at speeds of up to 1200 per hour. Labels are perfectly applied without wrinkles, giving your finished products a highly professional look. AP-Series Label Applicators are an ideal accessory to Primera’s LX- or CX-Series label printers. The applicators can also apply roll-fed, pressure-sensitive labels produced by most other flexographic, offset and digital presses.

    AP360 is the base model. It quickly and efficiently applies single labels at a time.

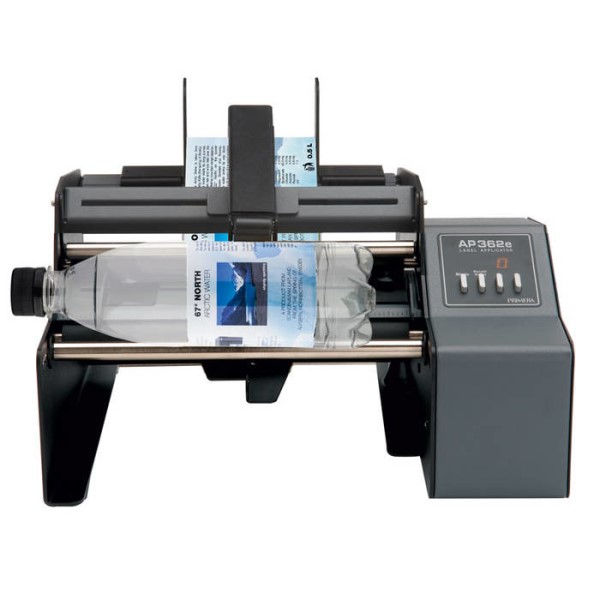

    AP362 is an advanced model. It can apply one or two different labels to a single container. A built-in LED counter and memory for up to nine front-to-back label offsets is also included.

    Features:

    • Accurately applies labels to the front (AP360) or front and back (AP362) with variable spacing
    • Quick set-up and easy operation
    • Fast – labels are applied at 5.3” (135mm) per second – up to 1200 containers per hour
    • Compact size – fits on most desks and countertops
    • Professionally designed – one of the only semi-automatic label applicators available with UL, CSA and FCC safety and emissions certifications
    • Industrial strength – built with heavy-duty sheet metal and steel for long life
  • Container Width:

    1” to 9.4” (25.4mm to 238mm)

    Container Diameter:

    0.6” to 6.7” (15mm to 170mm)

    Container Shape:

    Cylindrical and many tapered

    Supply roll diameter:

    Up to 8” (203mm)

    Media liner width:

    1” to 8.375” (25.4mm to 213mm)

    Supply roll core:

    2” to 3” I.D. (51.8mm to 76.2mm)

    Electrical rating:

    12VDC, 5.0A

    Power requirements:

    100-240VAC, 50/60 Hz, 60 watts

    Agency certifications:

    UL, UL-C, CE, FCC Class A

    Weight:

    16 lbs. (7.26 kg)

    Dimensions:

    13.4”W x 8.9”H x 12.9”D (340mmW x 226mmH  x 328mmD)

    Gap between Labels:

    Recommended: 1/8" - 1/4" ( 3.175 mm - 6.3500 mm )

    Label Type:

    Die cut with waste removed.  Clear labels can be used.

    Liner Thickness:

    2 mil - 10mil (smoothness will affect feeding - a liner that is too slippery or too thin will slip through the drive rollers)

    Label + Adhesive Thickness:

    5 mil - 15 mil

  • Healthcare icon AP360 Label Applicator can be used in Health care Industry
    Retails icon AP360 Label Applicator can be used on Retail Stores
    Logistics icon AP360 Label Applicator Mostly used in Logistics Industry for Asset Managemnet and Tracking
    Manufacturing icon Manufacturing Industry uses AP360 Label Applicator
    Government icon AP360 Label Applicator used in various Government Sectors
    Travel & Leisure icon AP360 Label Applicator for Travel & Leisure
    Special Materials icon AP360 Label Applicator for Special Materials
