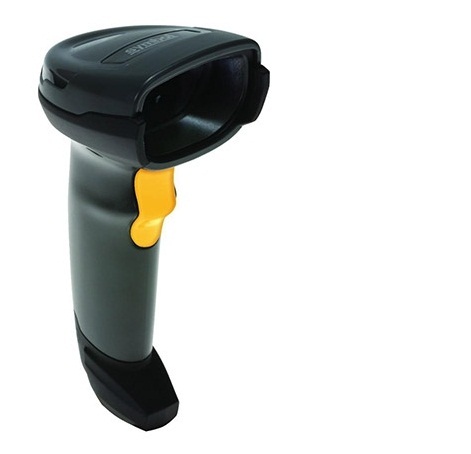

Zebra DS4308 Barcode Scanner
The Zebra DS4308 is a feature-rich next generation 2D imager that resets the bar for scanning performance, scanning range, versatility and easeof-use.
-
Want High performance in your scanner, Zebra DS4308 scanner has next-generation scanning technology. Its does the job of two scanners, allowing you to scan nearer and farther than any other scanner.
The Zebra DS4308 does scan it all — 1D or 2D scan, electronic or printed on paper labels or plastic cards, even if the barcode is dirty, scratched or poorly printed. , you can capture barcodes as fast as they can pull the scan trigger. And that means no more Point-of-Sale exceptions that can turn into longer lines,Zebra DS4308 — a new class of scanner for a new world of barcodes.
-
Technical Specification
PHYSICAL CHARACTERISTICS Dimensions 6.48 in. H x 3.86 in. L x 2.64 in. W (16.5 cm H x 9.8 cm L x 6.7 cm W) Weight (w/o cable) 5.71 oz. / 162 g Power 5 VDC ± 10% @ 360 mA (RMS typical) Interfaces Supported USB, RS232, Keyboard Wedge, RS485 (IBM 46xx) , SSI
The scanner supports the following protocols over USB:Â HID Keyboard (default mode), SNAPI, IBM SurePOS (Yellowstone) (IBM Handheld, IBM Tabletop, OPOS), USB CDC, SSI over USB CDC, Toshiba TEC
The scanner supports the following protocols over RS232: Standard, Wincor Nixdorf, ICL, Fujitsu, Olivetti, Omron and CUTESYMBOLOGY DECODE CAPABILITY 1-D UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat 2-D PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Han Xin Postal Australian Post, US PLANET, Royal Mail 4 State Customer, US POSTNET, KIX Code (Dutch), UK Postal, Japan Post, UPU 4 State Postal FICS (Post US4), USPS 4 State Postal (Post US3), Canadian Post (Postbar) Minimum Resolution SR: Code 39 4 mil, UPC 60% 7.8 mil, PDF417 5 mil, Datamatrix 7.5 mil HD: Code 39 3 mil, UPC 60% 7.8 mil, PDF417 4 mil, Datamatrix 5 mil ACCESSORIES Hands-Free Options Gooseneck Intellistand Power Supplies Power supplies are available for applications that do not supply power over the host cable USER ENVIRONMENT Operating Temp. 32° F to 122° F/0° C to 50° C Storage Temp. -40° F to 158° F/-40° C to 70° C Humidity 5% to 95%, non-condensing Drop Specification Withstands multiple 6 ft./1.83 m drops to concrete Ambient Light Immunity Immune to normal indoor lighting up to 1600 Lux; immune to sunlight up to 86,000 Lux PERFORMANCE CHARACTERISTICS Light Source Aiming pattern: 617 nm LED Illumination: 660 nm LEDs Imager Field of View 36° (H) x 22.5° (V) Roll Pitch Yaw 0 - 360° ± 65° or greater ± 60° or greater Print Contrast 20% minimum reflective difference Motion Tolerances Up to 30 in. / 76.2 cm per second REGULATORY Electrical Safety UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed. LED Safety IEC 62471:2006 and EN 62471:2008 EMI/RFI FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN55024, Medical Electrical Equipment: EN60601-1-2 Environmental Compliant with RoHS directive 2011/65/EU WARRANTY Subject to the terms of Zebra's hardware warranty statement, the DS4308 is warranted against defects in workmanship and materials for a period of 5 years from the date of shipment. For the complete Zebra hardware product warranty statement, go to http://www.zebra.com/warranty RECOMMENDED SERVICES Enjoy easy access to fast repair and expert support with Service from the Start; add “next business day†replacement with Advanced Exchange. DECODE RANGES
SR FOCUS RANGE TYPICAL WORKING RANGES Bar Code Type Symbol Density Near Far Code 39 3.0 mil 1.5 in. / 3.8 cm 5.4 in / 13.7 cm Code 39 5.0 mil 0 in. / 0 cm 11.0 in / 27.9 cm PDF417 6.6 mil 1.1 in. / 2.8 cm 8.0 in / 20.3 cm UPC 13.0 mil 0 in. / 0 cm 28.0 in / 71.1 cm Data Matrix 10.0 mil 2.0 in / 5.1 cm 9.0 in / 22.9 cm Code 39 20.0 mil 0 in / 0 cm 53.0 in / 134.6 cm QR 10.0 mil 1.1 in./2.8 cm 8.5 in./21.6 cm QR 20.0 mil 0.9 in./2.3 cm 16.2 in./41.1 cm HD FOCUS RANGE TYPICAL WORKING RANGES Bar Code Type Symbol Density Near Far Code 128 3.0 mil 1.0 in / 2.5 cm 3.0 in / 7.6 cm Code 39  3.0 mil 0.5 in / 1.3 cm 5.8 in / 14.6 cm Code 39  5.0 mil 0.0 in / 0.0 cm 10.0 in / 25.4 cm Micro PDF 4 mil 1.0 in /2.5 cm 4.7 in / 11.9 cm PDF417 6.6 mil 0.2 in / 0.5 cm 7.8 in / 19.7 cm UPC 13 mil 0 in / 0 cm 16.5 in / 41.9 cm DataMatrix 5 mil 1.2 in / 3.0 cm 3.5 in / 8.9 cm DataMatrix 7.5 mil 1.0 in / 2.5 cm 6.5 in / 16.5 cm DataMatrix 10.0 mil 0.8 in / 1.9 cm 8.2 in / 20.8 cm Code 39 20.0 mil 0 in / 0 cm 30.0 in / 76.2 cm QR 10.0 mil 0 in / 0 cm 7.0 in / 17.8 cm QR 20.0 mil 0.5 in / 1.3 cm 11.0 in / 27.9 cm -
Zebra DS4308 Barcode Scanner can be used in Health care Industry Zebra DS4308 Barcode Scanner can be used on Retail Stores Zebra DS4308 Barcode Scanner Mostly used in Logistics Industry for Asset Managemnet and Tracking Manufacturing Industry uses Zebra DS4308 Barcode Scanner Zebra DS4308 Barcode Scanner used in various Government Sectors Zebra DS4308 Barcode Scanner for Travel & Leisure Zebra DS4308 Barcode Scanner for Special Materials
